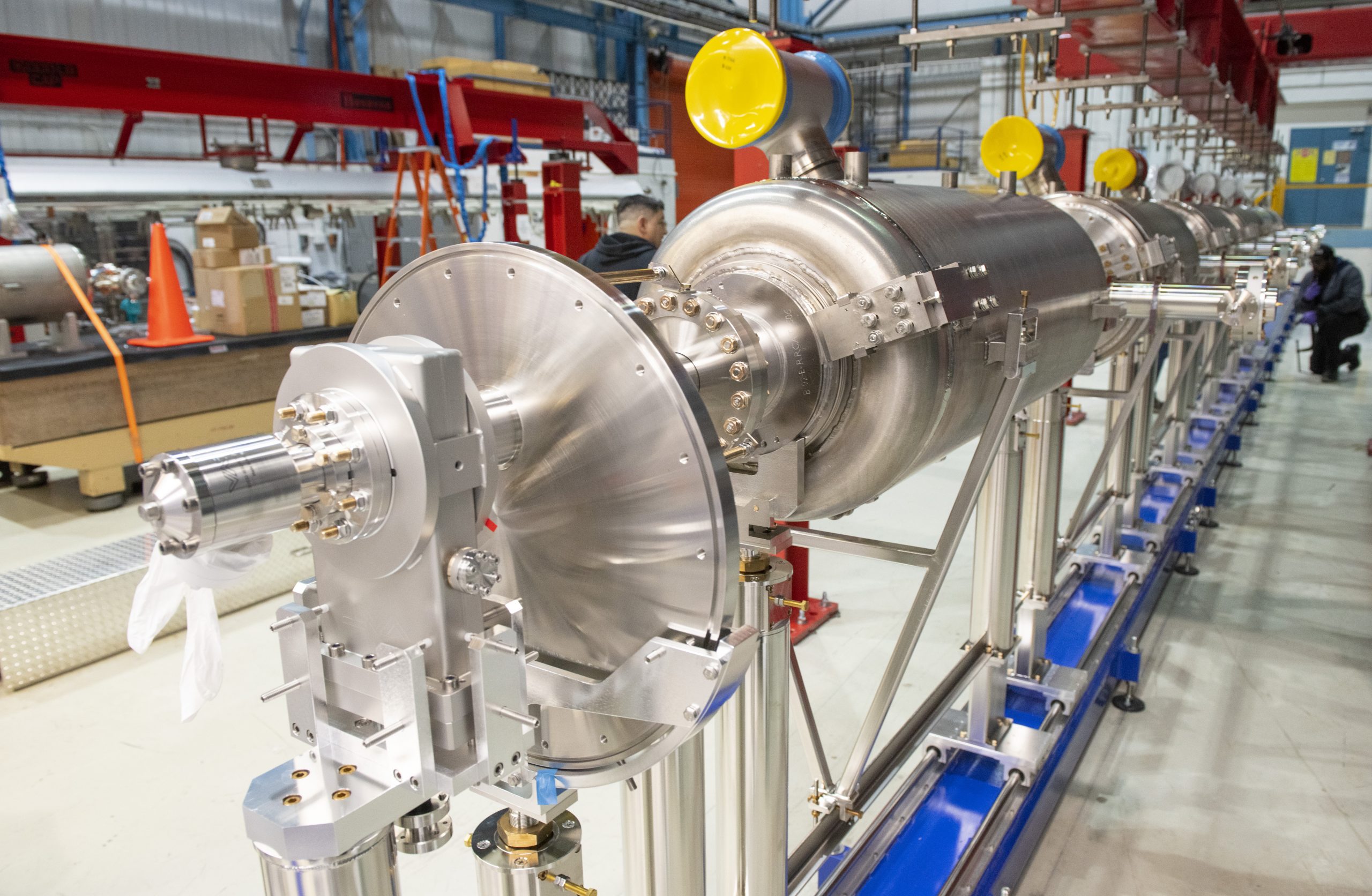

Superconducting accelerator facility

Superconducting Accelerators:
A Global Perspective on Technology and Innovation

Exploring the cutting-edge world of superconducting particle accelerators, from international megaprojects to China's ambitious domestic programs, and their transformative impact on science, medicine, and industry.

High-Energy Physics Materials Science Medical Applications
100+
Major Facilities Worldwide
16T
Future Magnet Fields
2.5MW
CiADS Beam Power

Introduction to Superconducting Accelerators

Superconducting accelerators represent the pinnacle of particle acceleration technology, utilizing materials that exhibit zero electrical resistance when cooled to near absolute zero temperatures. These advanced machines are revolutionizing our ability to explore fundamental physics, develop new materials, and treat diseases.

Core Technology Components

Superconducting RF Cavities

Made primarily from niobium and cooled by liquid helium to around 2 Kelvin (-271°C), these cavities can sustain strong electromagnetic fields with minimal energy loss, enabling efficient particle acceleration.

Superconducting Magnets

Wound from superconducting wire (Nb-Ti or Nb₃Sn), these magnets generate powerful magnetic fields for beam steering and focusing in circular accelerators.

The significance of superconducting accelerators extends far beyond fundamental research. In medicine, they enable precise cancer therapy through proton and ion beam treatment. In industry, they facilitate advanced materials processing and sterilization. The efficiency gains from superconducting technology are transforming what's possible in particle acceleration.

Historical Development

Early International Pioneering Efforts

The development of superconducting accelerators has been a truly international endeavor. In the United States, early proposals like the "Desertron" concept in 1982 laid groundwork for ambitious projects. The Superconducting Super Collider (SSC), proposed in the early 1980s and approved during the Reagan administration, aimed for energies in the tens of TeV but was terminated by Congress in 1993 due to escalating costs.

Concurrently, Europe's CERN has been at the forefront, with studies for future colliders like the Future Circular Collider (FCC) encouraged by the 2013 EU Strategy Update. China's engagement began in the 1960s-70s with superconducting materials and magnet development at institutions like the Beijing General Research Institute of Nonferrous Metals.

Evolution of SRF Technology

Superconducting Radio Frequency (SRF) technology has evolved significantly, becoming a cornerstone for modern particle accelerators. Early developments focused on understanding superconductivity at RF frequencies and improving niobium cavity performance. Progress in niobium material purity, cavity fabrication, and surface treatments has enhanced quality factors and accelerating gradients.

International collaborations among facilities like CERN, DESY, Fermilab, KEK, and JLab have been vital. In China, SRF research began with Dr. Ding Yu's work on an X-band cavity at IHEP in the 1970s, with significant advancements through the PKU-IHEP Joint SRF Centre established in 2001.

Current Status and Technical Advancements

State-of-the-Art SRF Cavities

The current state-of-the-art in SRF cavities reflects decades of intensive R&D. Niobium remains the material of choice, with performance continually improving through advancements in material purity, fabrication techniques, and sophisticated surface treatments.

Key Performance Metrics:

  • Accelerating gradients exceeding 30-40 MV/m
  • Quality factors in the range of 10¹⁰ to 10¹¹
  • Operating temperatures of 1.8-2.0 K

Progress in High-Field Magnets

Significant progress has been made in developing high-field superconducting magnets. While Niobium-Titanium (Nb-Ti) enabled fields up to 9-10 T in facilities like the LHC, Niobium-Tin (Nb₃Sn) has emerged as the leading candidate for fields in the 12-16 T range.

The High Luminosity LHC (HL-LHC) upgrade is installing new Nb₃Sn quadrupole magnets. Beyond this, considerable R&D focuses on High-Temperature Superconductors (HTS) like REBCO tapes and Bi-2212 wires, which can operate at higher temperatures and in much higher magnetic fields, potentially exceeding 20 T.

Major International Projects

High-Energy Physics Colliders

Large Hadron Collider (LHC)

The world's largest particle accelerator uses 1232 main dipole magnets (8.3 T) and 392 main quadrupole magnets, all Nb-Ti operating at 1.9 K.

Energy: 13 TeV (design: 14 TeV)
Upgrade: HL-LHC will feature 11-12 T Nb₃Sn magnets

Future Circular Collider (FCC)

A 90-100 km circumference collider studying proton-proton collisions up to 100 TeV, requiring dipole magnets of 16 T or higher.

Options: FCC-hh (hadron) and FCC-ee (electron-positron)
Technology: Nb₃Sn or HTS magnets

Medical Applications

Proton Therapy Systems

Superconducting cyclotrons and synchrotrons are revolutionizing cancer treatment. Mevion Medical Systems has developed compact superconducting proton therapy systems like the MEVION S250i.

Advantage: Superior dose conformity, sparing healthy tissue
Footprint: Compact designs for hospital integration

Medical Isotope Production

Superconducting accelerators offer advantages in efficiency and specific activity for producing isotopes like Technetium-99m for diagnostic imaging and other therapeutic applications.

Benefits: Higher yields, reliable production
Future: Novel isotope creation capabilities

China's Domestic Development

Strategic National Projects

China has established a comprehensive ecosystem for superconducting accelerator development, pursuing ambitious projects across high-energy physics, neutron science, and nuclear applications. The country's approach emphasizes self-sufficiency and international competitiveness in critical accelerator technologies.

Project Type Key Technology Status
CEPC Electron-Positron Collider 1.3 GHz SRF cavities, HTS magnets R&D Phase
CiADS Accelerator-Driven System High-power CW superconducting linac Under Construction
CSNS Spallation Neutron Source Superconducting spoke cavities Operational
HIAF Heavy-Ion Accelerator Superconducting QWRs, HWRs Construction

Technological Capabilities

China has made substantial advancements in SRF cavity development and manufacturing. IHEP constructed a 4500 m² SRF facility as part of the Platform of Advanced Photon Source technology R&D (PAPS) project, designed for processing, testing, and assembling hundreds of SRF cavities annually.

In magnet technology, China is actively pursuing High-Temperature Superconducting magnets, particularly iron-based superconductors, with significant progress in tape fabrication and cable production.

Policy and Funding Landscape

International Funding Mechanisms

Europe

CERN + Horizon Europe

Coordinated through European Strategy for Particle Physics

United States

DOE ARDAP Program

$31.3M requested for FY2025

China

MOST + CAS + NSFC

National Key R&D Programs and Five-Year Plans

China's Domestic Funding Framework

China's development is strategically guided through National Key R&D Programs and Five-Year Plans. The CEPC has received support from MOST's national R&D plan since 2016, with significant funding from multiple sources.

Key Funding Sources:

  • MOST: National Key R&D Programs for CEPC and other major projects
  • CAS: Planned 200 million RMB in 2018 for HTS magnet research
  • Local Governments: Beijing allocated 500+ million RMB to IHEP for SRF development

Challenges and Future Outlook

Technical Challenges

Despite significant progress, several technical hurdles remain in SRF and magnet development. Achieving even higher accelerating gradients while maintaining cost-effectiveness is a continuous challenge, involving mitigation of performance-limiting phenomena such as field emission and quenches.

For superconducting magnets, the push towards higher magnetic fields (16 T and beyond) requires overcoming material limitations. While Nb₃Sn is being implemented, its brittleness and complex manufacturing process are hurdles. High-Temperature Superconductors offer potential but present challenges in conductor fabrication and cabling.

Cost and Sustainability

The escalating cost and immense scale of future projects pose significant challenges. Next-generation facilities envision circumferences of 100 km or more, requiring unprecedented quantities of superconducting components and leading to multi-billion-dollar price tags.

Energy consumption of large facilities is a growing sustainability concern. While superconducting technology is more efficient, cryogenic plants consume substantial electricity. Future projects must address energy efficiency and environmental impact.

Emerging Applications

Medical Innovations

Compact superconducting cyclotrons for proton therapy and medical isotope production

Industrial Applications

Electron beams for sterilization and materials processing

Nuclear Energy

Accelerator-Driven Systems for waste transmutation

Scientific Discovery

Next-generation colliders for fundamental physics

Technology Evolution Timeline

timeline title "Superconducting Accelerator Development" "1960s-70s" : "Early material research" : "First superconducting magnets" "1980s-90s" : "Large-scale projects (SSC, LHC)" : "Commercialization of Nb-Ti technology" : "SRF technology matures" "2000s" : "TESLA technology standardization" : "ILC design efforts" : "China establishes SRF capabilities" "2010s" : "LHC achieves 13 TeV" : "Nb₃Sn implementation begins" : "Medical applications expand" "2020s" : "HL-LHC installation" : "HTS magnet development" : "Compact industrial systems" "2030s+" : "Future circular colliders" : "ADS systems operational" : "Widespread medical adoption"
